Chip line with Oven, Spray Dynamics seasoning drum, Scale and Bagger

This used pita chip packaging line is a comprehensive setup equipped to streamline chip production and packaging operations. It includes a variety of high-quality components such as a Viva tunnel oven with a stainless steel construction and three tiers of heating, ensuring even cooking over its 144-inch length. The packaging process benefits from a Viking M250 vertical form fill and seal system, capable of producing up to 100 bags per minute, accommodating a range of bag sizes and offering storage for 100 recipes. For materials handling, the system incorporates multiple cleated incline conveyors and a Z-bucket conveyor to efficiently move products between stages. Seasoning is precisely applied using a Spray Dynamics drum, which can handle up to 250 strokes per minute, and a VHT vibratory seasoning applicator. Accurate weighing is handled by a Yamato 12-head combination scale with a range of 20 to 2000 grams, while product integrity is maintained through the Lock Inspections V5 metal detector. Overall, this line is constructed for durability and performance, featuring stainless steel components and advanced controls. It is a versatile and efficient solution for food processing facilities looking to optimize their production and packaging workflow.

Used Pita Chip Packaging Line

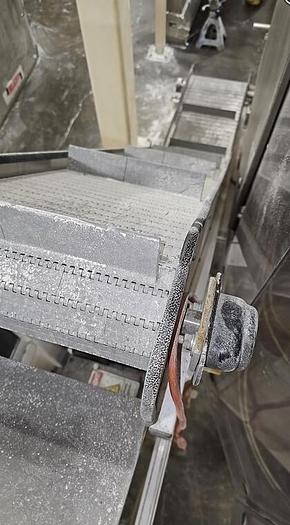

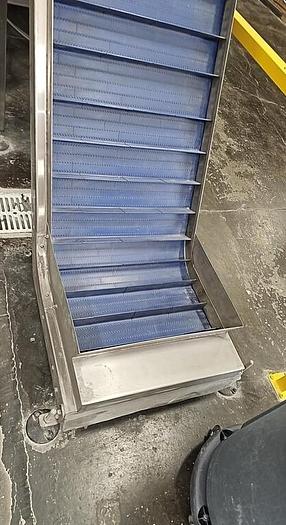

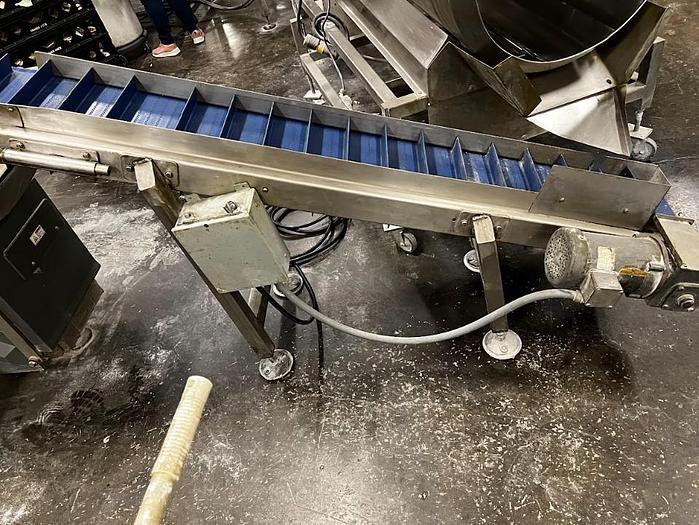

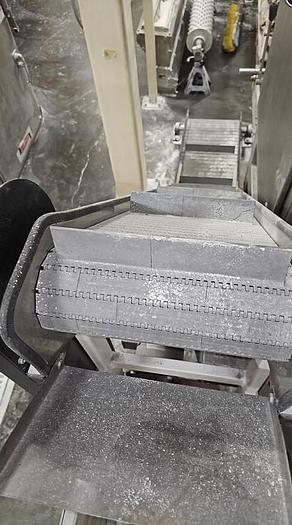

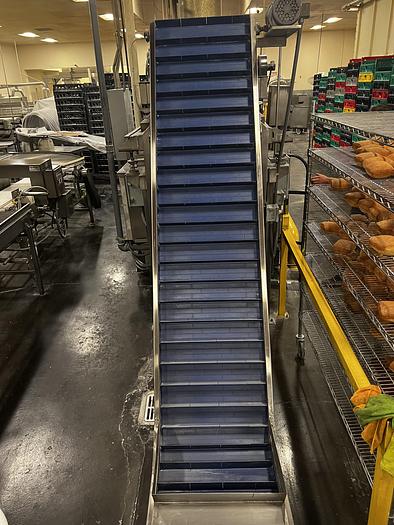

• Cleated incline conveyor:
• Bottom length: 12 inches
• Incline length: 92 inches
• Width: 22 inches
• Cleat center: 5.5 inches
• Cleat height: 2 inches
• Electrical: 230/460 Volts, 3 Phase, 60 Hz

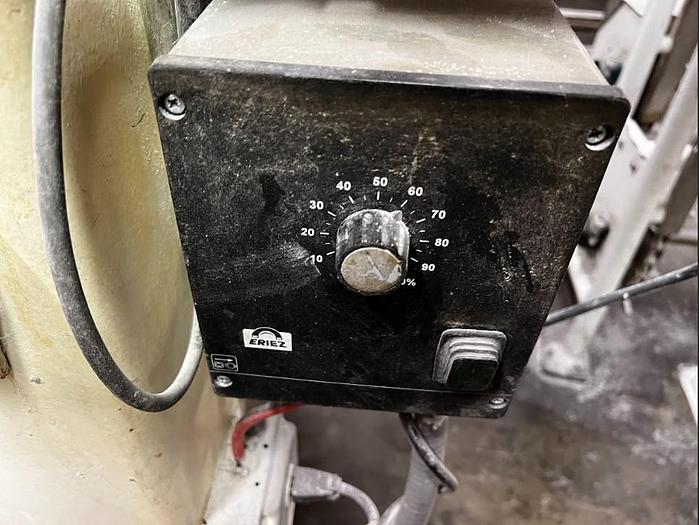

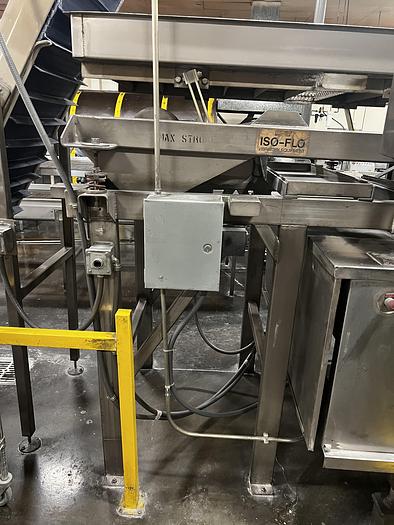

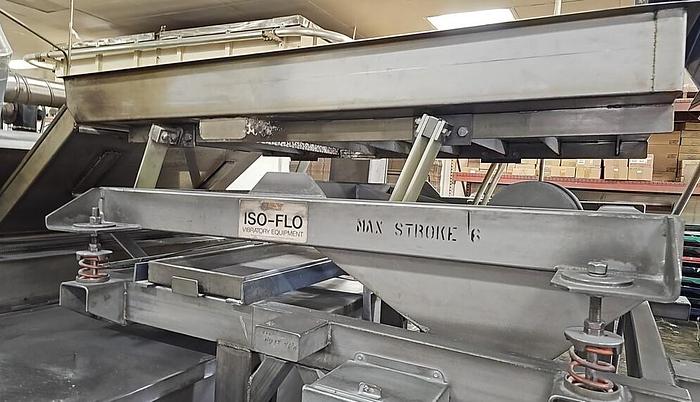

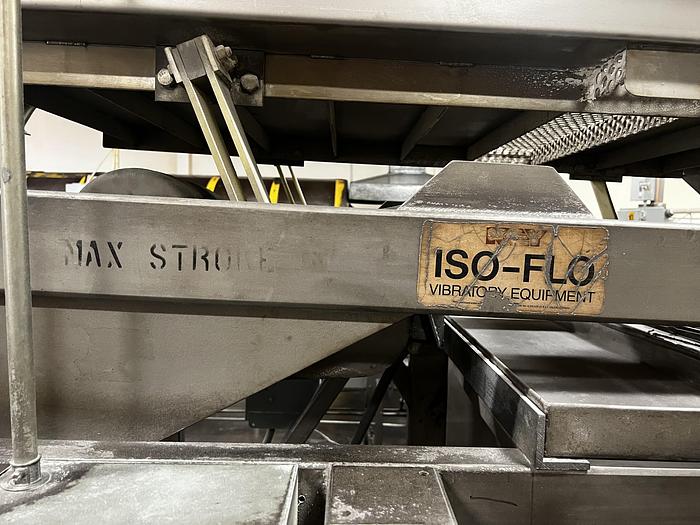

• Iso-flo vibratory feeder:
• Length: 60 inches
• Width: 32 inches
• Decline length: 22 inches
• Push button controls

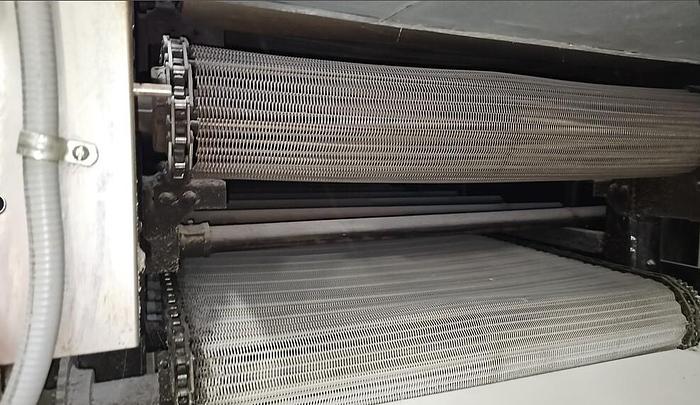

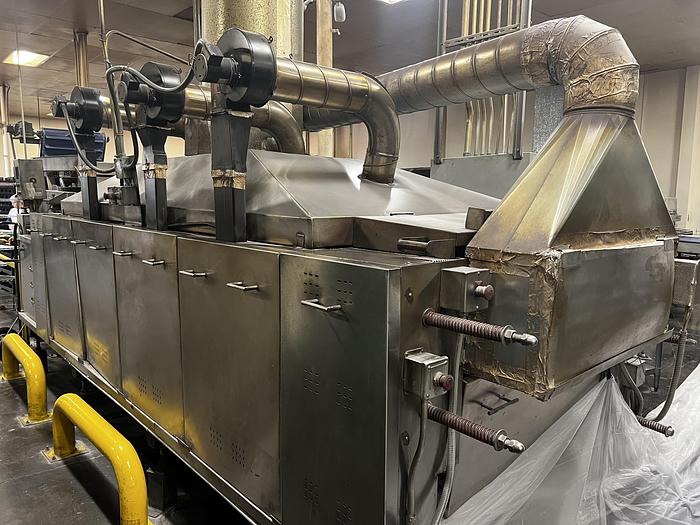

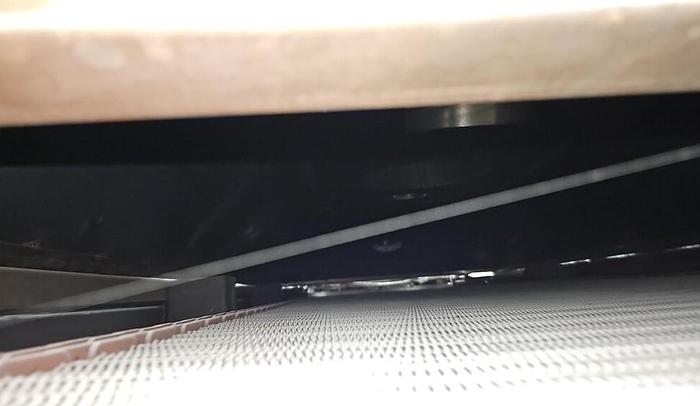

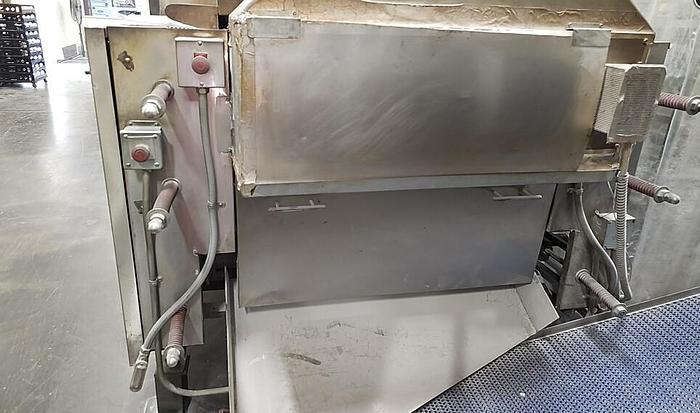

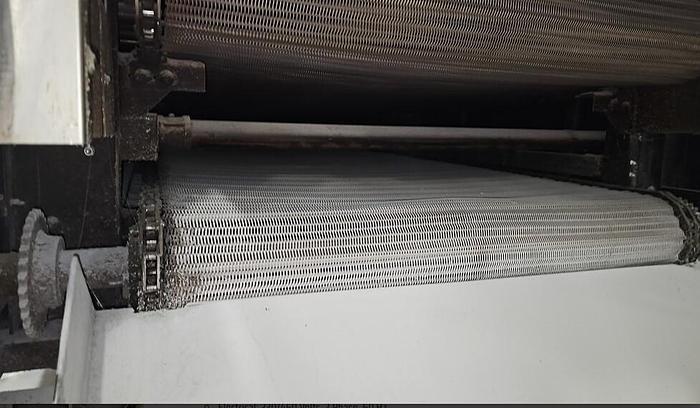

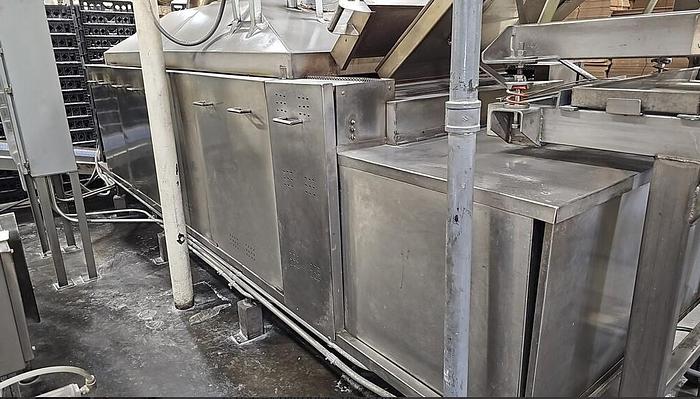

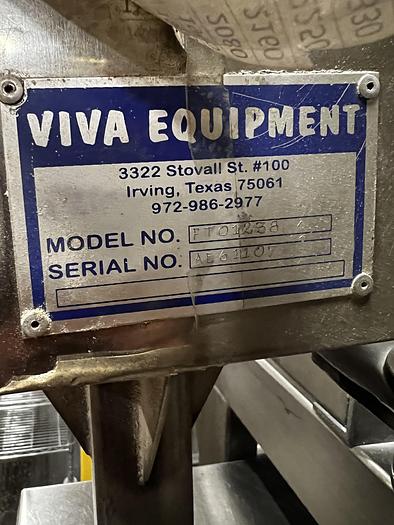

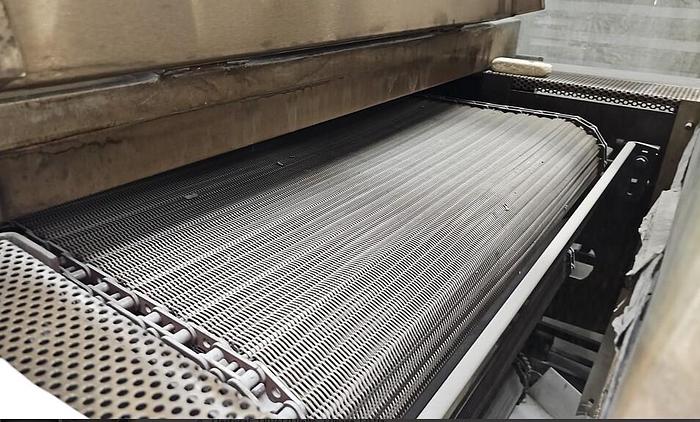

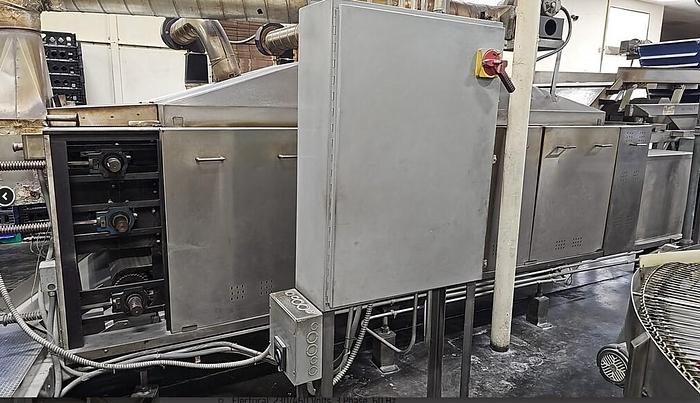

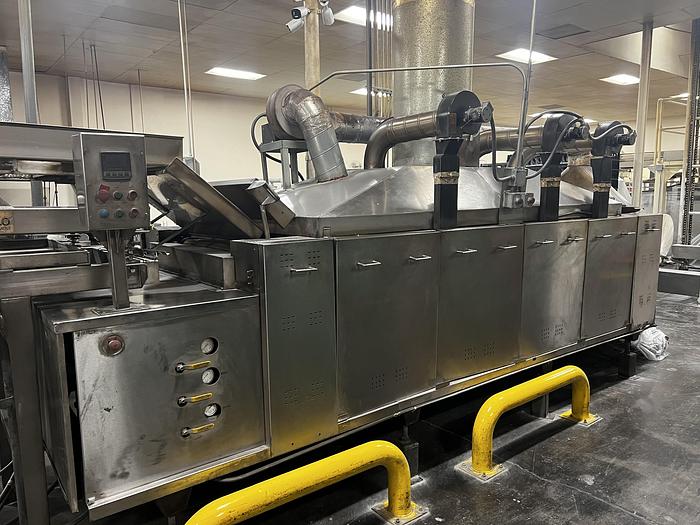

• Viva tunnel oven:
• Length: 144 inches
• Width: 36 inches
• Clearance height: 3 inches
• 3-tiers of heating
• Stainless steel construction

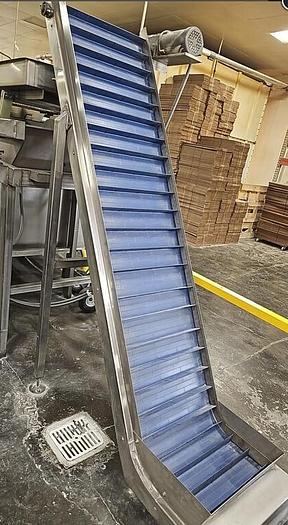

• Cleated incline conveyor:
• Incline length: 132 inches
• Width: 23 inches

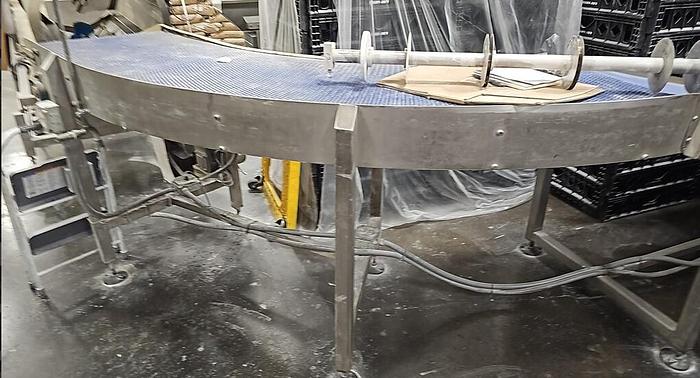

• Curve corner to corner length: 72 inches

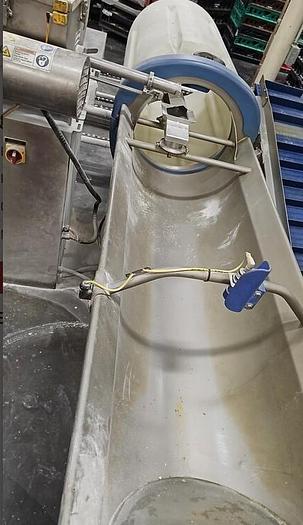

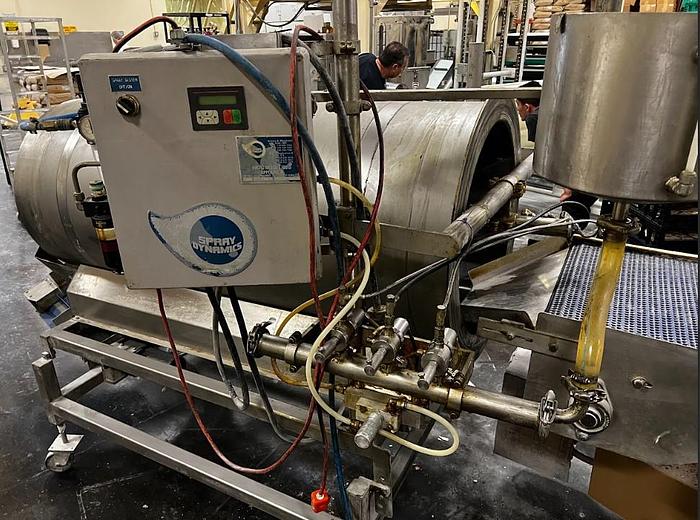

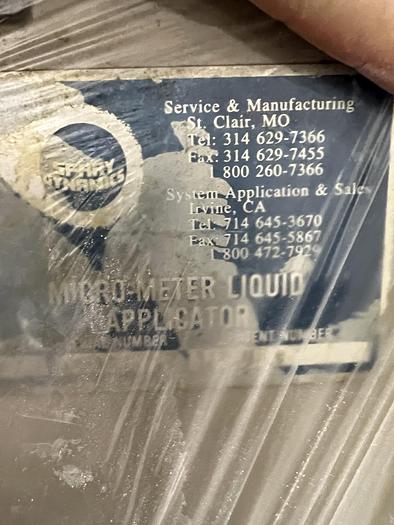

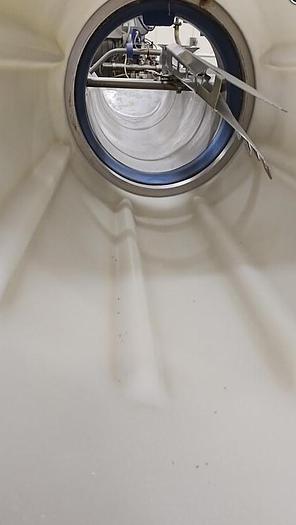

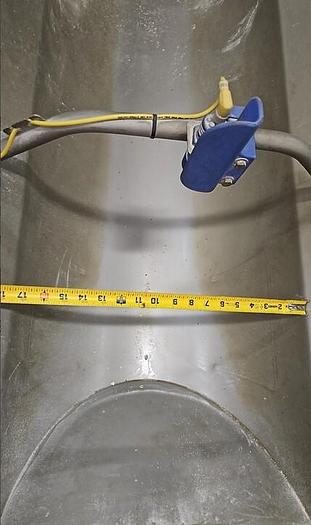

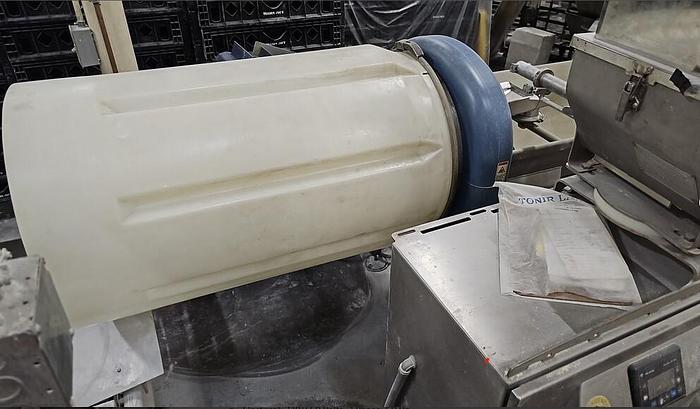

• Spray Dynamics seasoning drum:
• Model: MS1
• Up to 250 strokes per minute (depending on product specifications)
• Diameter: 24 inches
• Length: 64 inches
• Liquid applicator
• Oil hopper:
• Capacity: 4 gallons
• Diameter: 12 inches
• Depth: 10 inches
• Air: 80 PSI

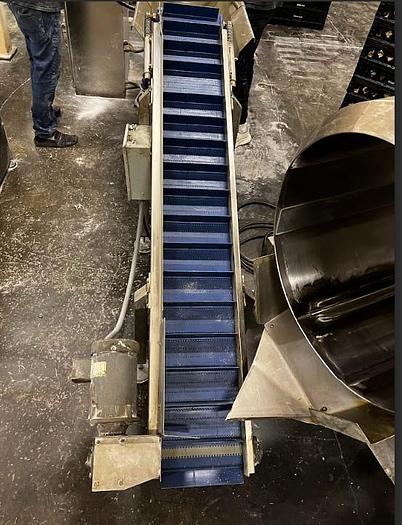

• Cleated incline conveyor:
• Length: 72 inches
• Width: 10 inches
• Cleat centers: 4.5 inches
• Cleat height: 2 inches

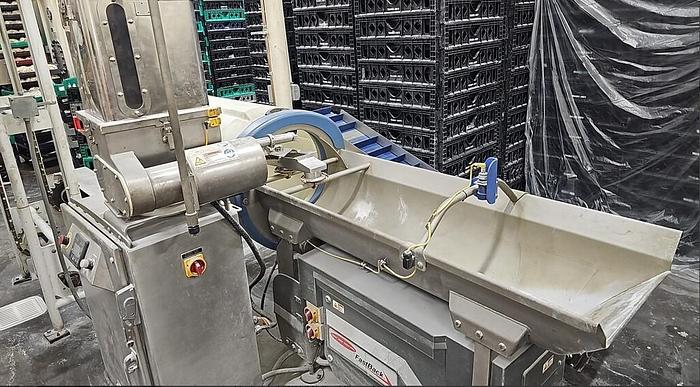

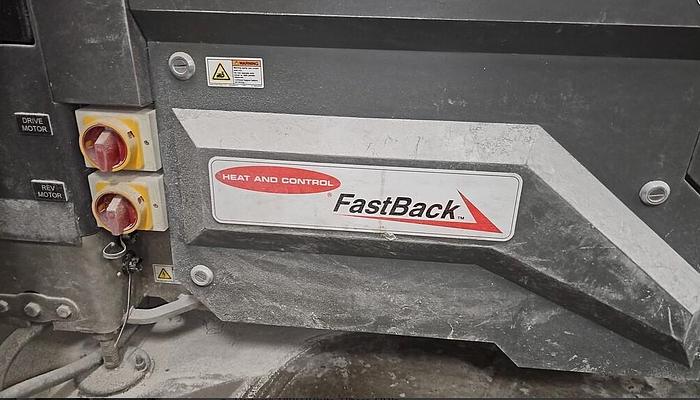

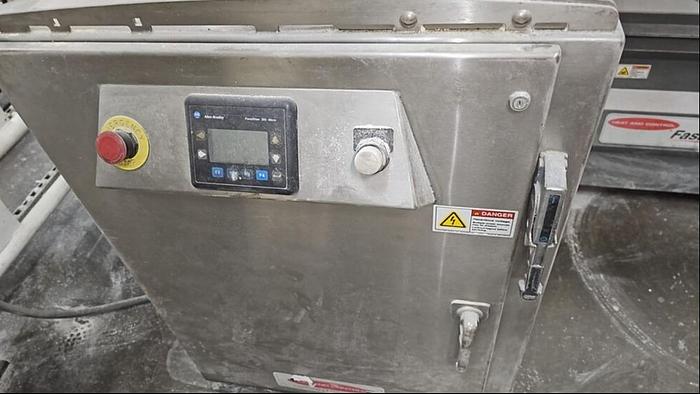

• Heat and control fastback conveyor:
• Maximum capacity: 1,000 pounds per hour (depending on product specifications)
• Bulk density: 6.6 pounds per foot cubed
• Dimensions:
• Length: 120 inches
• Width: 18 inches
• Side wall height: 9 inches

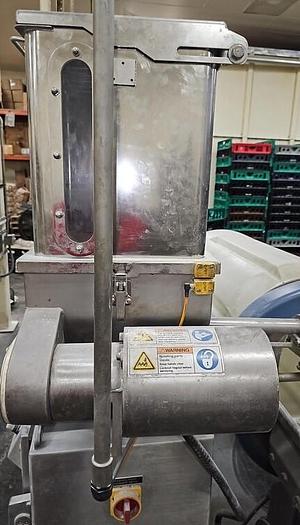

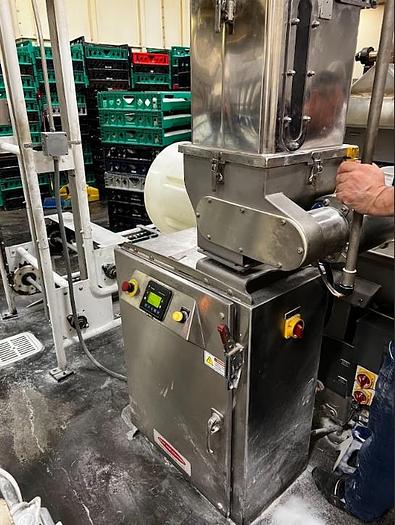

• Seasoning auger:
• Hopper capacity: 3.5 foot cubed
• Removable flex-wall insert, salt auger washdown kit, laser sensor

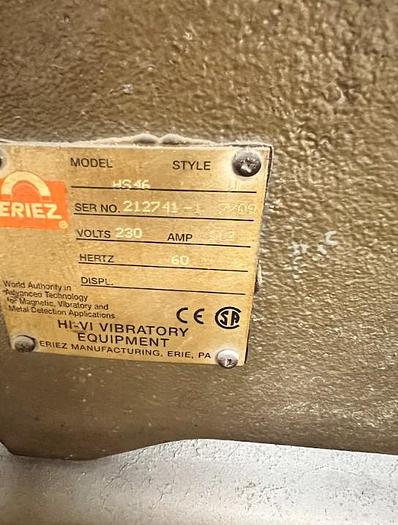

• VHT Virbratory seasoning applicator
• Electrical: 230 Volts, 3 Phase, 60 Hz

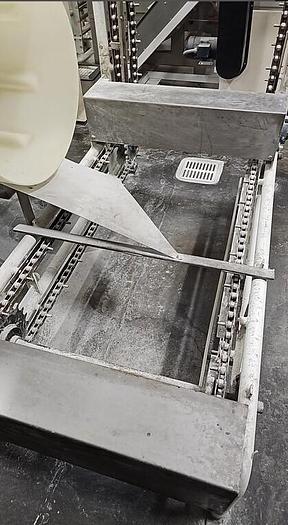

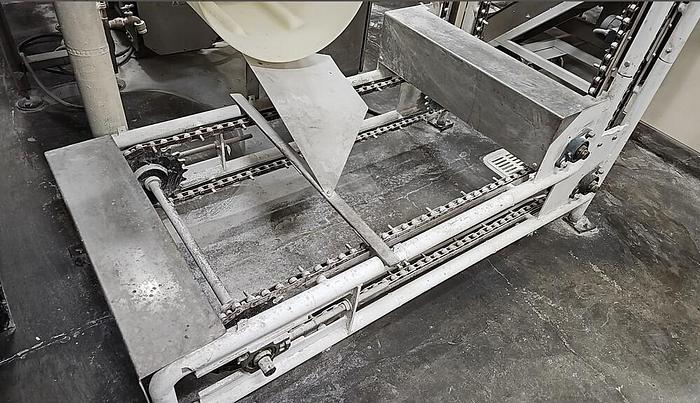

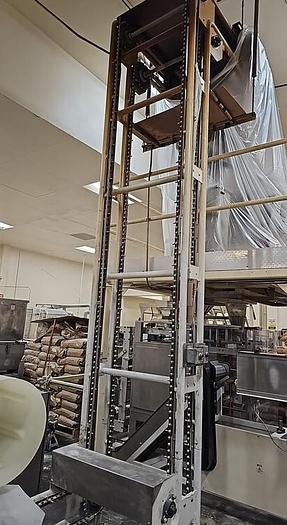

• Z-bucket conveyor:
• Bottom length: 48 inches
• Incline height: 168 inches
• Top length: 68 inches
• Chain width: 28.5 inches

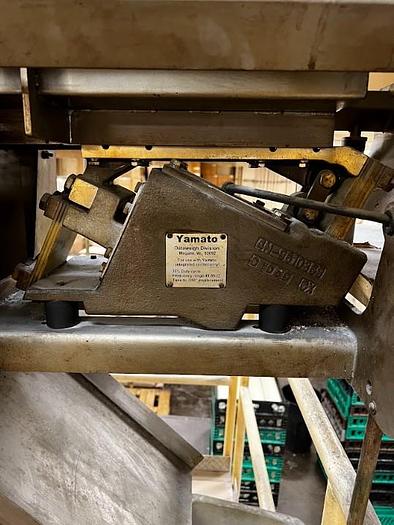

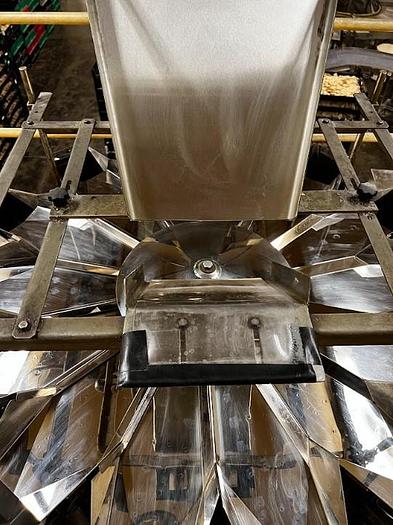

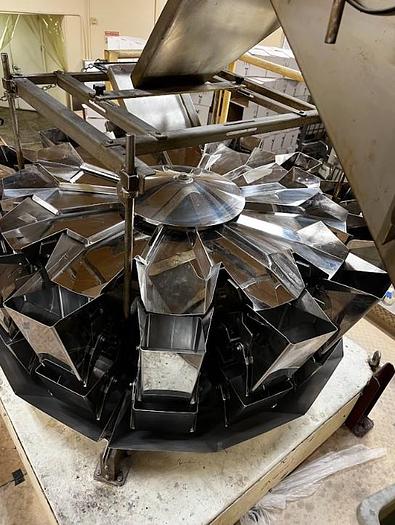

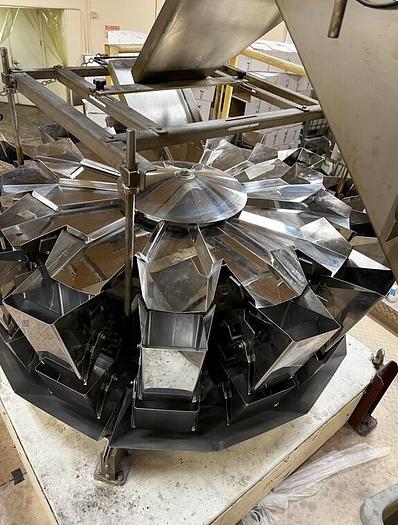

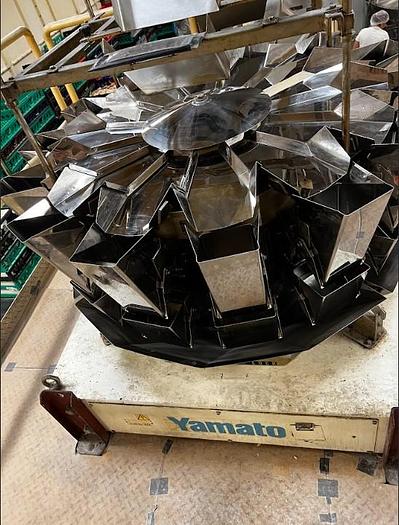

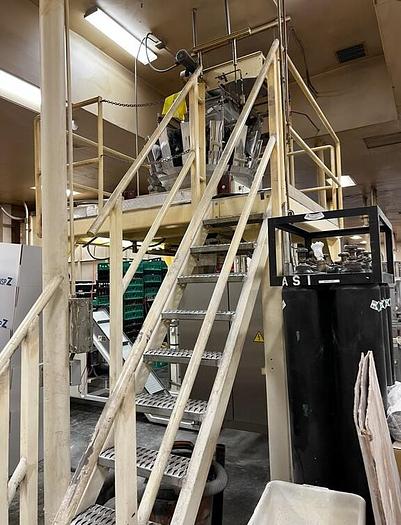

• Yamato 12-head combination scale:
• Weighing range: 20 to 2000 grams
• Output: approximately 120 weighs per minute (depending on product and target weight)
• Vibratory cone top

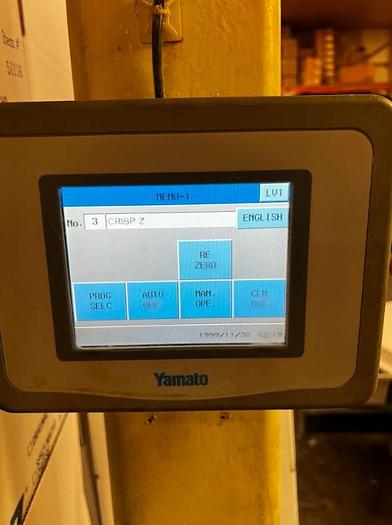

• 10.4 inch touch screen
• Automatic feed control
• Stainless steel construction

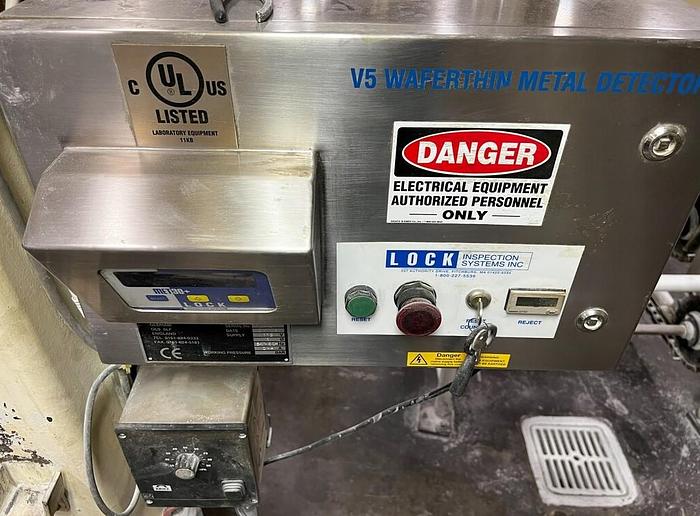

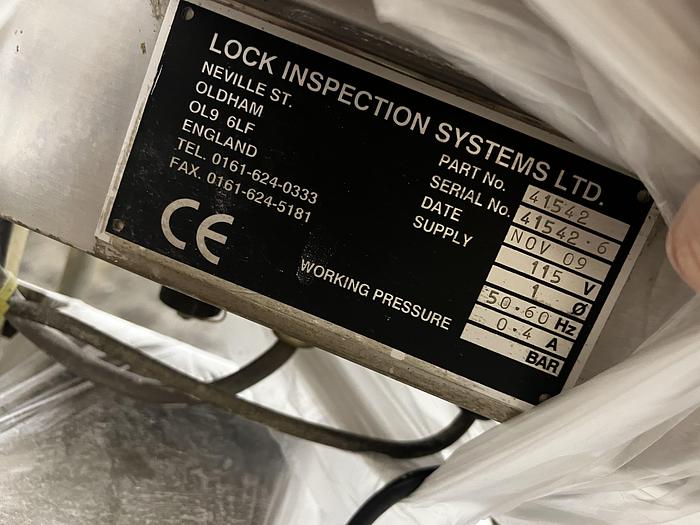

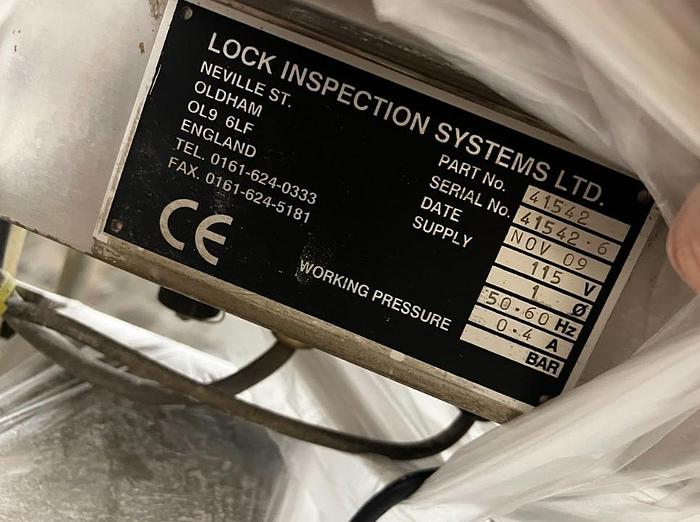

• Lock Inspections V5 Waferthin gravity metal detector:
• Temperature range: 14 - 104°F
• Dimensions:
• Depth: 402 millimeters
• Width: 305 millimeters
• Touchscreen controls
• Stainless steel construction
• Electrical: 115 Volts, Single phase, 50/60 Hz

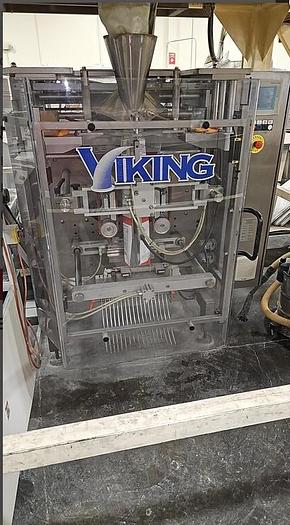

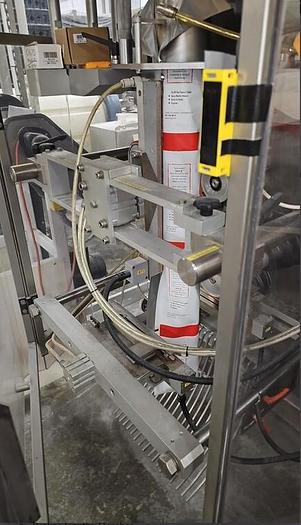

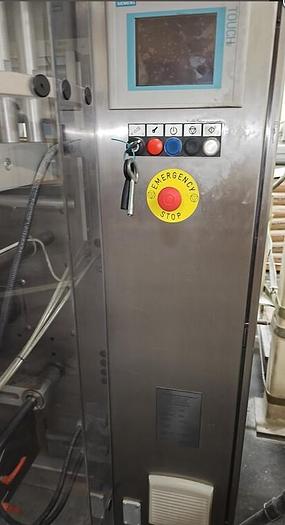

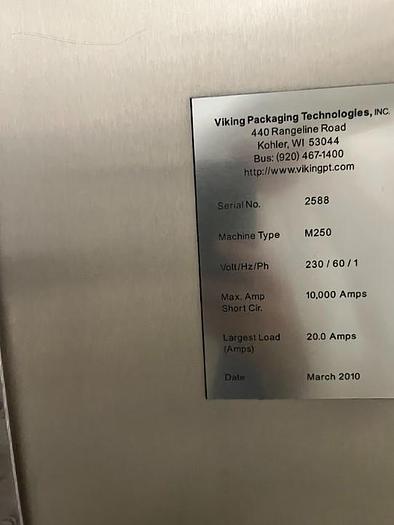

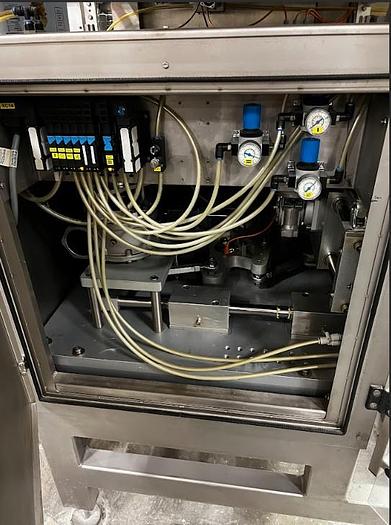

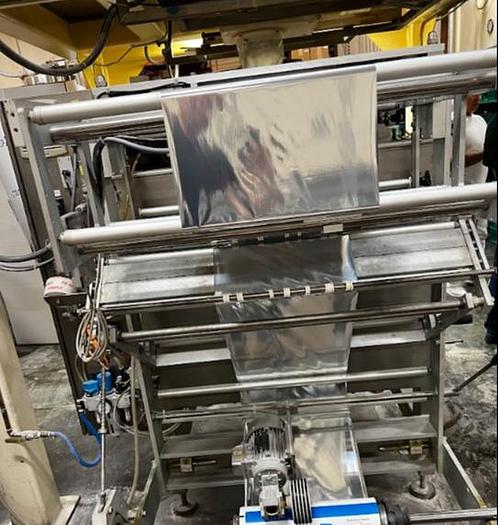

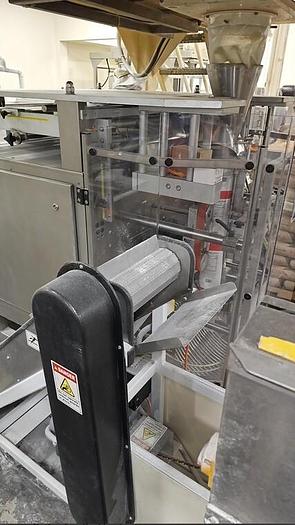

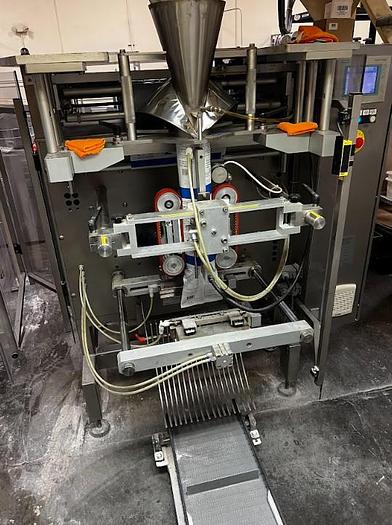

• Viking M250 vertical form fill and seal:
• Speed: up 100 bags per minute (depending on product specifications)
• Minimum bag size:
• Length: 2.3 inches
• Width: 2.3 inches
• Maximum bag size:
• Length: 15.75 inches
• Width: 9.8 inches
• Seal jaw width: 11 inches
• Forming horn diameter: 4 inches
• Maximum web width: 14.75 inches
• Photo-eye and encoder
• Storage for 100 recipes
• Discharge height: 11 inches
• Currently running:
• Film: 2.5 mil
• Flat bag size: 6 x 8.25 inches
• Web width: 12.5 inches
• Back seal: Offset fin seal (Left over right off center)
• Film rewind: copy out bottom first
• Stainless steel construction
• Air: 15-18 CFM at 90 PSI
• Electrical: 230 Volts, 60 Hz, Single Phase

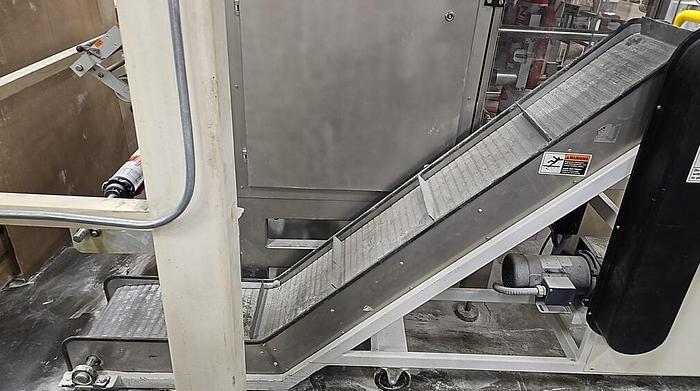

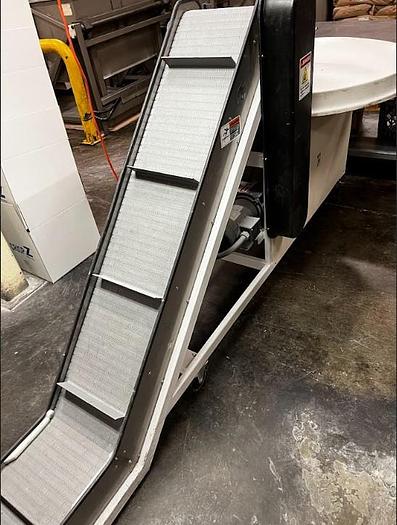

• Cleated takeaway conveyor:
• Bottom length: 20 inches
• Incline length: 60 inches
• Width: 12 inches
• Cleat centers: 15 inches
• Cleat height: 2 inches
• Electrical: 90 Volts, 5 Amps, 0.5 Horsepower
• Previous application: 3.5 oz bags of pita chips at 20 bags per minute
