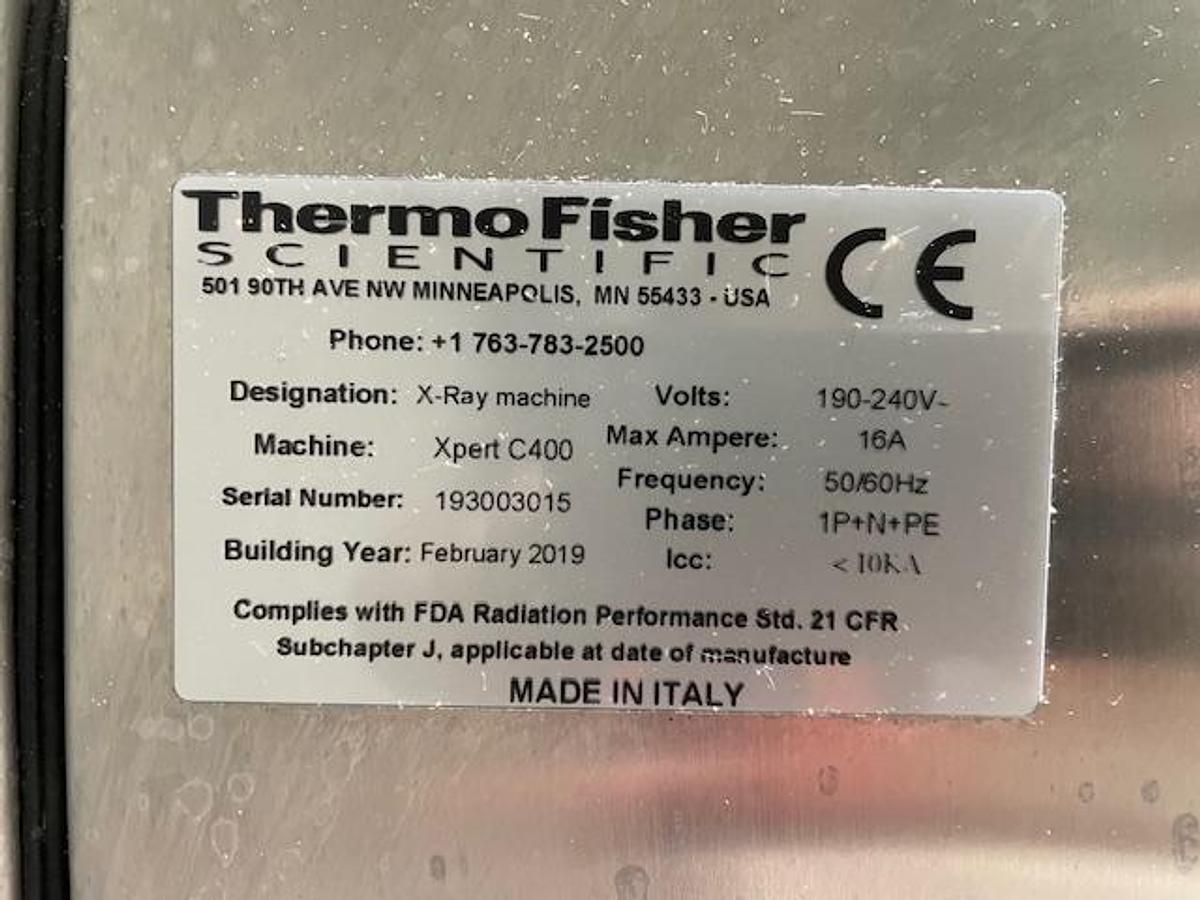

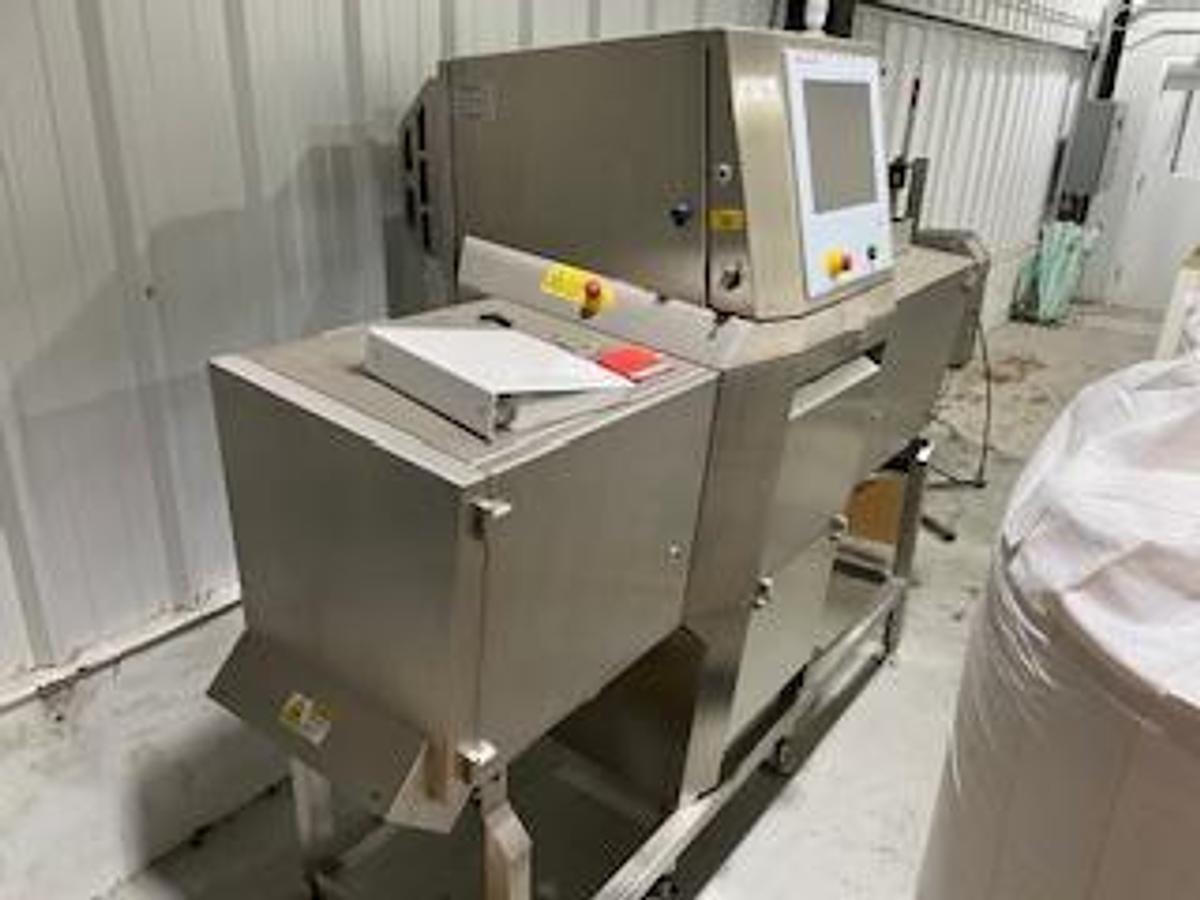

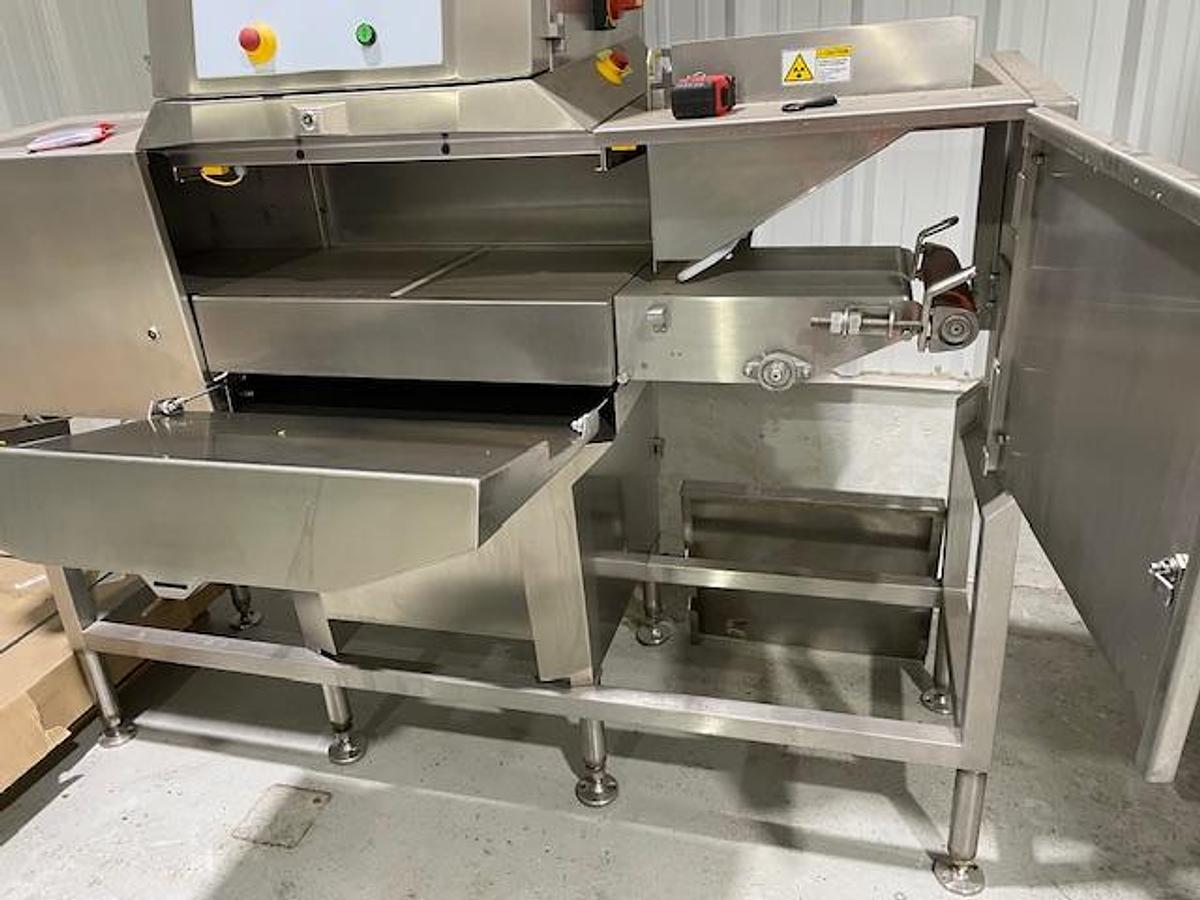

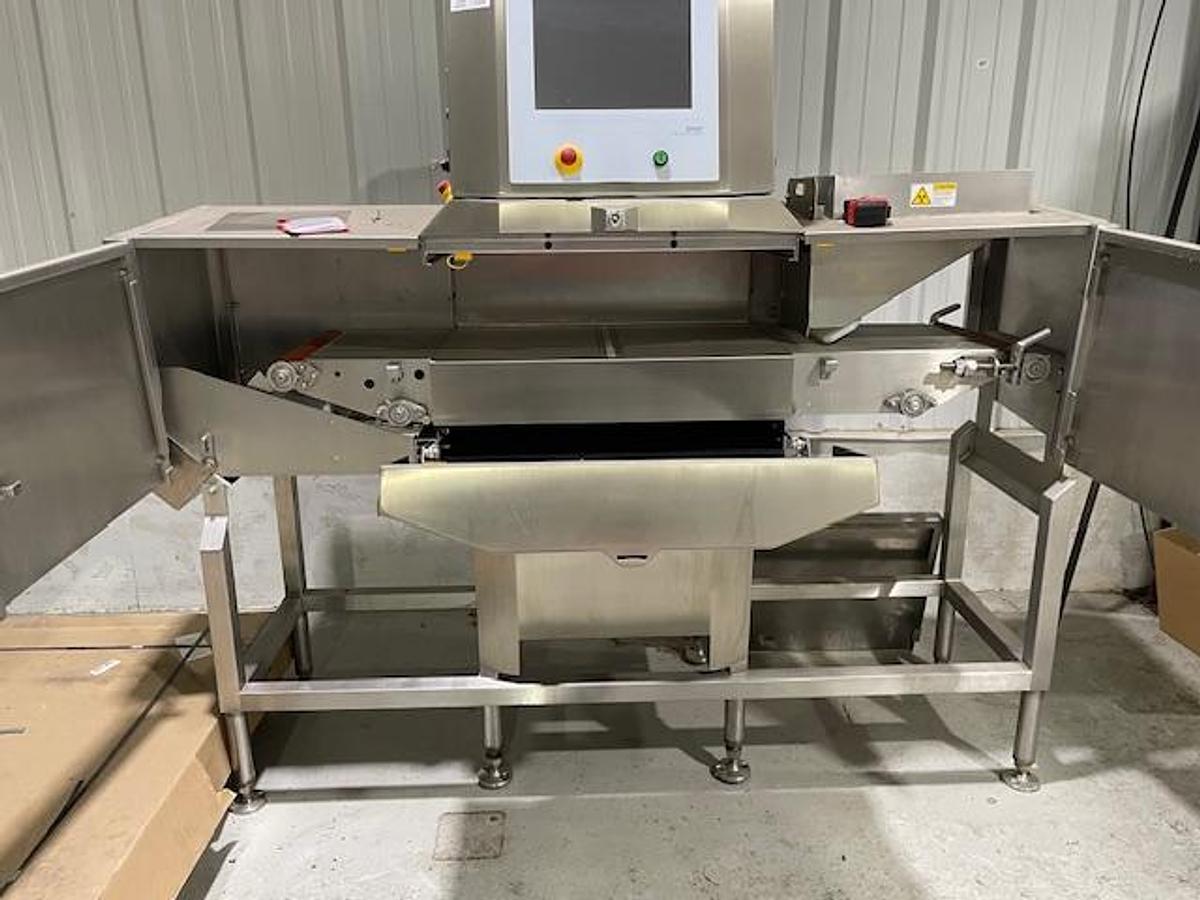

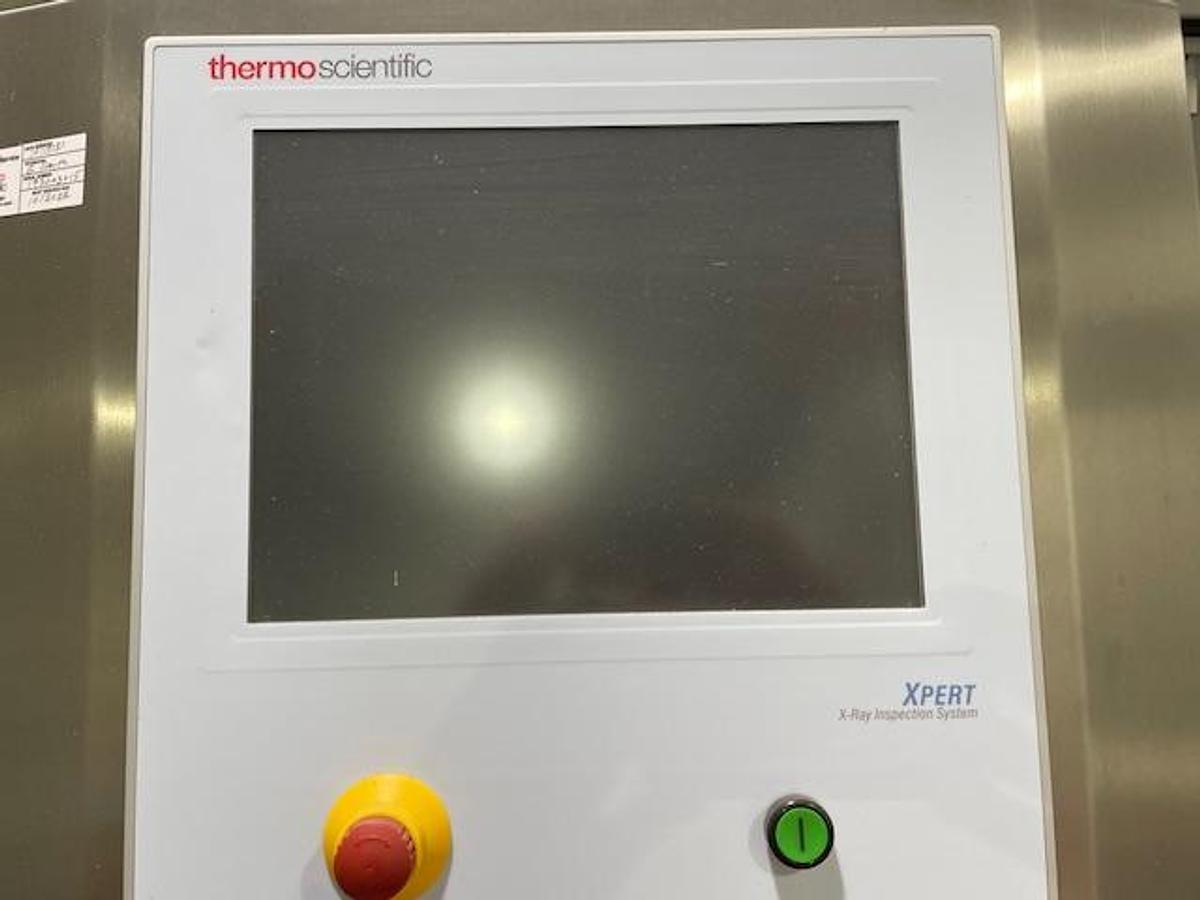

Thermo Fisher Scientific X Ray Machine

SpecificationsBelt SpeedUp to 40 m/min.Belt MaterialFDA Approved UrethaneDescriptionXpert C400 X-Ray Inspection SystemDigital Inputs6 availableDigital Outputs4 availableCompressed Air80 psi to 100 psi (5.5 bar to 6.9 bar)Converyor Heights Available800 to 1000 mm (31.5 to 39.4 in.) Frames available for nominal line heights of 1200 and 1400 mm (47.2 to 55.1 in.)Detector Scan RateUp to 2800 Lines/sec.Detector Resolution0.8 mm standard, 0.4 mm optionalIP RatingIP54, optional or IP65 with washdown airconditioner optionUSB Port2.0 watertight port on outside of machineX-Ray Curtain MaterialProprietary No-lead MaterialX-Ray PowerStandard: 100 W (70 kV/1.4 ma) Operational: 160 W (80 kV/2ma) and 320 W (80 kV/4ma)Export/Safety ConformanceFDA CFR 21 part 1020.40, UK IRR 1999, RED act (contact factory for other regional certifications)

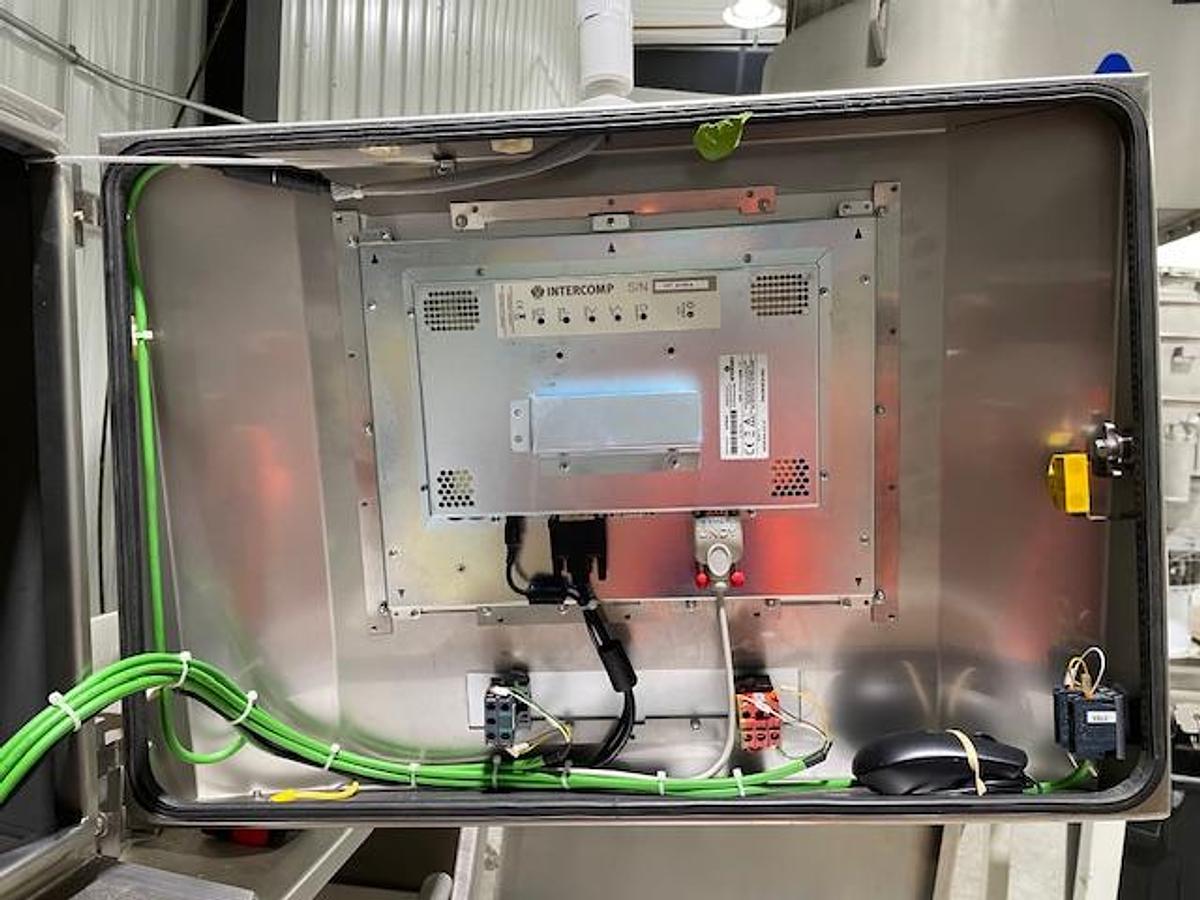

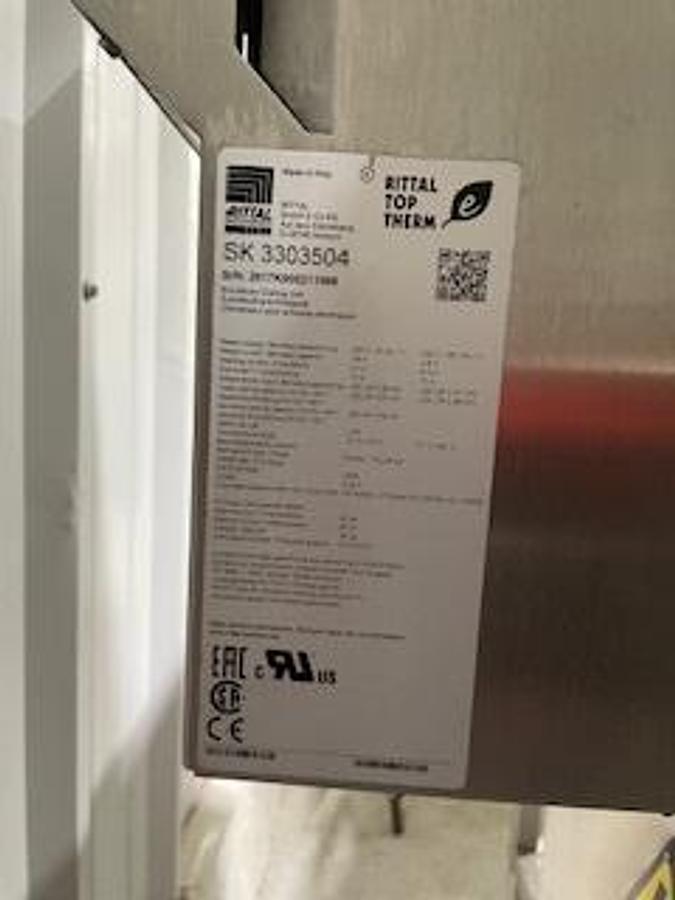

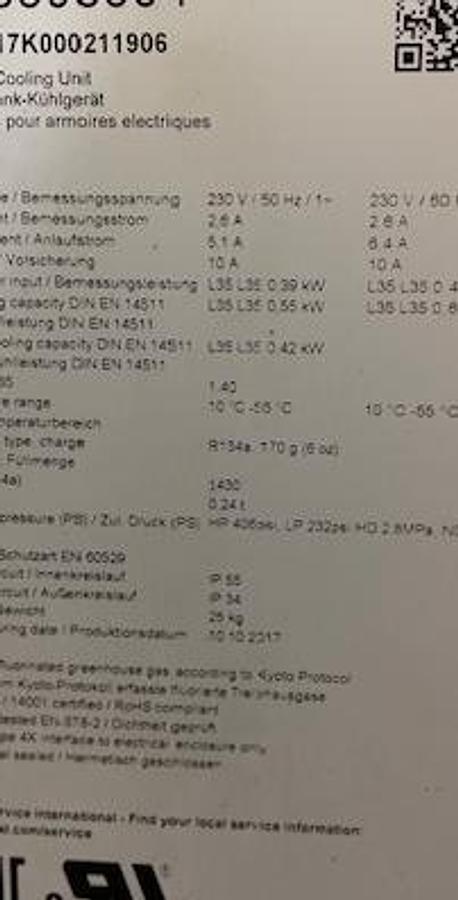

CE, UL or CSA on requestHuman Machine Interface15-inch diagonal touchscreen with protective coverInspection Algorithms AvailableWeight, Count, Grid and CustomizationsInterface LanguagesEnglish, Spanish, Italian, French, German, Chinese; Others available on requestIntrusion Protection RatingIP54, optional IP65 with washdown airconditioner option, or upgrade to IP69KMachine CoolingBuilt-in cabinet airconditionerMultilane OperationUp to 8 lanesNetwork PortEthernetOperating Temperature5°C to 40°C (41°F to 104°F)Radiation Safety ConformanceFDA CFR 21 part 1020.40, UK IRR 1999, RED act (contact factory for other regional certifications)Relative Humidity20% to 90% non-condensingSafety FeaturesX-ray power key, emergency stops, radiation curtains, LED X-ray imminent/on lights, all doors equipped with magneticinterlocksSystem/Conveyor Lengths Available1.5 m (58.6 in). Many options for longer infeed and outfeed conveyorsVoltage190 to 240 VAC, 50/60 Hz, 20-amp serviceDetection Algorithms AvailableBinary, Contrast, Gradient, Groups, Morphology
